Insulation material slitting machine: lays the foundation for the "cutting" of the electronics industry

In the ever-changing field of the electronics industry, which pursues ultimate precision, we often focus on "star" components such as lithography machines, chips, and processors. However, behind these high-tech products, there is a class of seemingly ordinary but crucial basic materials - insulation materials, and an unknown but indispensable "behind-the-scenes hero" - insulation material slitting machines. It is that, with millimeter or even micron-level accuracy, has laid a solid and reliable foundation for the stability and innovation of the entire electronics industry.

1. See the real chapter on the small details: why do insulating materials need to be precisely slitted?

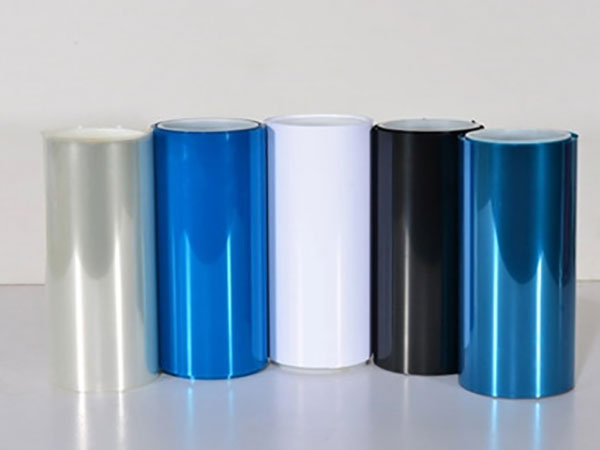

Insulation materials, such as polyimide (PI) films (commonly known as goldfingers), polyester (PET) films, composite materials (such as FR-4), etc., are the "patrons" of electronic components. They exist between the layers of circuit boards, in the lugs of lithium batteries, in the substrate of flexible circuits (FPCs), and in the packaging of various components, and their core mission is to prevent improper current flow and ensure the purity and stability of signal transmission.

These materials are mostly wide coils when they leave the factory, and the designs of electronic products are ever-changing and come in different shapes. This requires that the insulation material be cut into a variety of specific widths, lengths and shapes. The precision of slitting directly determines:

• Assembly accuracy: Dimensional deviations can lead to placement difficulties, affecting automated production efficiency.

• Reliability in Electrical Performance: Burrs, overflows, or layering can trigger tip discharges, reducing insulation strength and becoming a "time bomb" in circuits.

• Product miniaturization: As electronic products evolve towards thinness, lightness, and shortness, the requirements for slitting accuracy have moved from millimeter to micron, and any slight error can lead to product failure.

Therefore, slitting is not just a simple "cutting", but a precision manufacturing process related to the performance, longevity and safety of electronic products.

2. The function of "cutting" determination: the core technology of the insulation material slitting machine

A high-performance insulation slitting machine is the culmination of mechanical, electrical, optical and software technologies. The reason why it can "cut" the foundation depends on the following core competencies:

1. Extremely precise tension control: This is the "soul" of the slitting machine. From unwinding, slitting to winding, the whole process must maintain constant and appropriate tension. Excessive tension can cause the material to stretch, deform, or even break; too little tension will cause uneven winding, looseness, and wrinkles. The advanced servo drive system and closed-loop tension control technology ensure that the material is still "relaxed" in high-speed operation.

2. Meticulous cutting technology: Various slitting methods are available depending on the material properties. The sharp round blade is suitable for clean cuts on most film materials; For composite materials that are prone to burrs, ultrasonic cutting may be used to achieve "micro-fuse" through high-frequency vibration, and the incision is smooth and flat; There are also laser slitting for special needs, with their non-contact, high-precision characteristics, for more complex shapes.

3. Vision and inspection system: The high-resolution CCD vision system is like the "eye" of the slitting machine, tracking the edge of the material in real time, and automatic deviation correction (EPC) ensures that the slitting path is absolutely straight. At the same time, the online defect detection system can instantly detect defects, stains or scratches in the material, and automatically mark or remove them, ensuring the quality of each roll of finished material.

4. Intelligent integrated control system: The modern slitting machine is equipped with an intelligent "brain". The touchscreen HMI allows the operator to easily set all parameters. The system can remember a variety of product formulas and realize one-click production change, which greatly improves production flexibility and efficiency. The data traceability function allows the "life" of each volume of materials to be well documented.

3. Empowering innovation: How do slitting machines drive the electronics industry forward?

The technological advancement of insulation slitting machines is directly empowering many frontier areas of the electronics industry:

• Flexible electronics and wearables: For flexible circuit boards (FPCs) that need to be bent repeatedly, the slitting machine must ensure that the substrate and covering film are slitted without any internal injuries and stress concentrations, and the cuts must be as smooth as a mirror to ensure their long life in dynamic use.

• New energy vehicles and energy storage systems: A large number of insulating films, tapes, etc. are used in power batteries and energy storage battery packs. The high efficiency and high consistency production of slitting machines provide basic material guarantee for large-scale and safe manufacturing of batteries.

• 5G and high-frequency communication: The 5G era requires extremely high signal integrity, and the dielectric constant and loss factor of insulation materials are crucial. Precision slitting avoids defects introduced due to improper machining, ensuring stable and low loss of high-frequency signal transmission.

epilogue

The insulation material slitting machine, this precision equipment standing on the production line, may not be as dazzling as the end product, but with its silent and firm "ruling", it has laid the most microscopic, basic but most indispensable cornerstone for every signal transmission and stable operation of every moment in the electronic world. It is not only the tailor of materials, but also the guardian of precision, and the silent founder of the electronics industry moving towards higher, faster, and stronger things. In the wave of intelligent manufacturing, the constantly evolving slitting technology will continue to "cut" broader possibilities for the future of the electronics industry.
